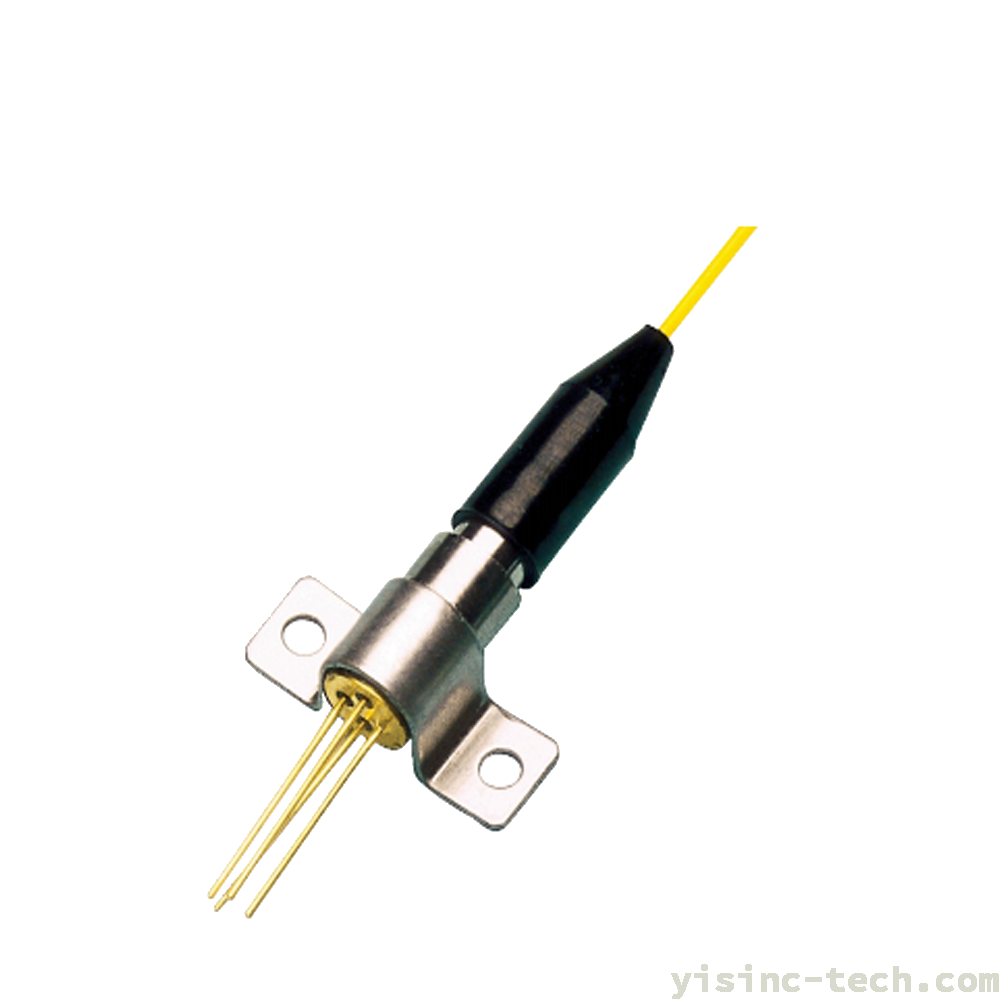

660nm FP Laser diode module
Ø MQW 660nm FP LD
Ø Low threshold current
Ø High output power
Ø Wide temperature range operation
(Tc= -10 to+55°C)
Applications
Ø Light Source 光源
Absolute maximum ratings
Parameter | Symbol | Value | Unit |
LD Forward current | IF(LD) | 100 | mA |
LD Reverse voltage | VR(LD) | 2 | V |
PD Forward current | IF(PD) | 2 | mA |
PD Reverse voltage | VR(PD) | 25 | V |
Operating temperature | TOP | -10 ~ +60 | ℃ |
Storage temperature | TST | -40 ~ +85 | ℃ |
Soldering temperature/time | - | 240/10 | ℃/S |
Optical & electrical characteristics
Parameter | Symbol | Test condition | Min. | Typ. | Max. | Unit |
Output power | Pout | Iop=Ith+30 | 0.2 | 5.0 | - | mW |
Center wavelength | λ | CW | 650 | 660 | 670 | nm |
Spectral width | Δλ | CW | - | - | 5 | nm |
Threshold current | Ith | CW | - | 50 | 60 | mA |
Operating voltage | Vop | CW, Iop=Ith+15 | - | 2.2 | 2.6 | V |
Rise/ Fall time | Tr/Tf | CW | - | - | 0.5 | ns |
Saddle Type 外形图:
Pigtail:
