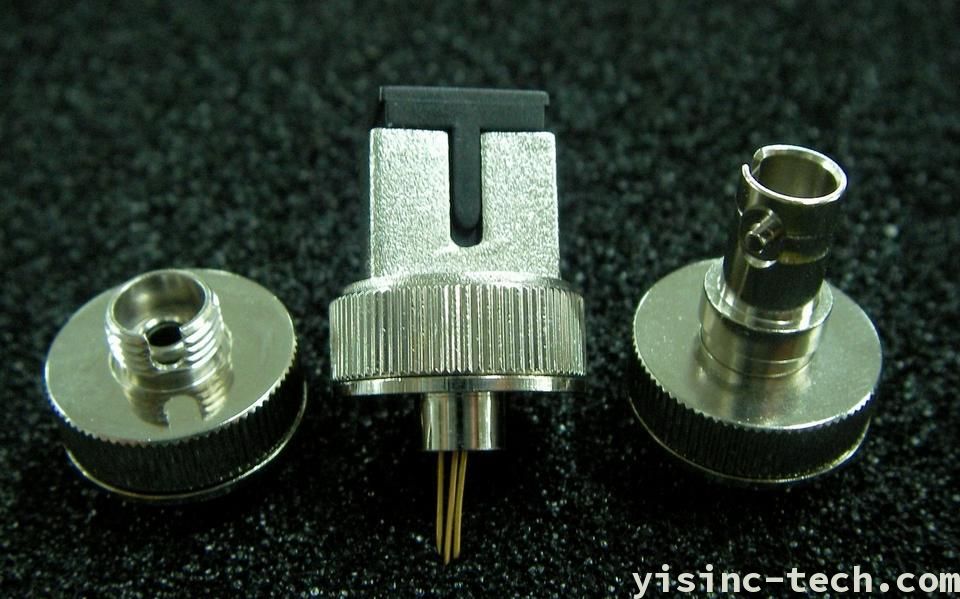

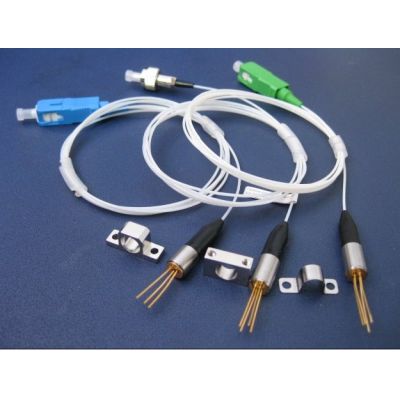

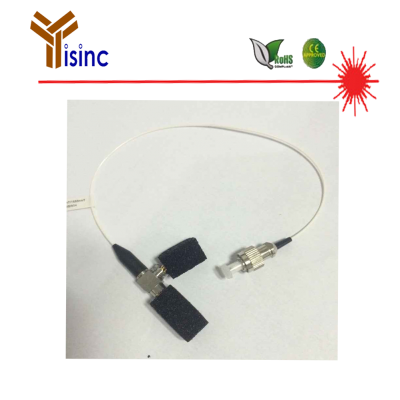

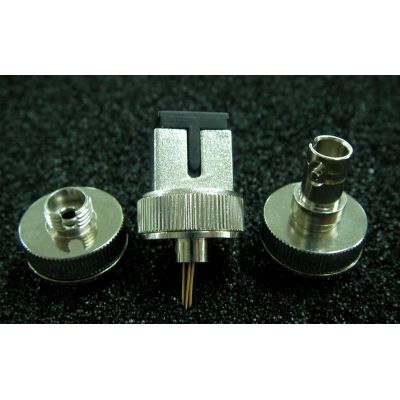

InGaAs PIN Photodiode Module
Features特征
Ø Small dark current低暗电流
Ø High reliability高可靠性
Ø High Accuracy 高灵敏度
Applications应用
Ø Power Meter 功率计
极限额定值
绝对最大额定参数
参数 | 符号 | 条件 | 数值 | 单位 |
储藏温度 | Tstg | - | -40~+100 | °C |
工作温度 | Top | - | -40~+85 | °C |
反向电压 | VR | CW | 30 | V |
焊接时间 | - | - | 10 | s |
焊接温度 | - | - | 260 | °C |
光电参数
参数 | Symbol | Min. | Typ. | Max. | Unit | Remark | Test Condition |
Wavelength Range | λ | 850 | — | 1700 | nm | — | |
Power Range | P | -70 | — | 6 | dBm | * | Vr=5V,Rl =50Ω |
-60 | — | 16 | dBm | ** | |||
-50 | — | 26 | dBm | *** | |||
-40 | — | 36 | dBm | **** | |||
Dark Current | Id | — | — | 0.5 | nA | Φ1000um | Vr=0V |
— | 1.0 | — | nA | Φ2000um | Vr=0V | ||
Responsivity | R | — | 0.85 | — | A/W | * | Vr=5V, λ=1310 nm |
— | 0.083 | — | A/W | ** | |||
— | 0.113 | — | A/W | *** | |||
— | 0.013 | — | A/W | **** | |||
Accuracy | — | — | ±0.25 | dB | @25°C | ||
Capacitance | Ct | — | — | 25 | pF | Φ1000um | Vr=5V, f=1MHz |
— | — | 151 | pF | Φ2000um | |||
Response Time | Tr | — | — | 20 | ns | Φ1000um | Vr=5V, 10~90% |
— | — | ns | Φ2000um |
